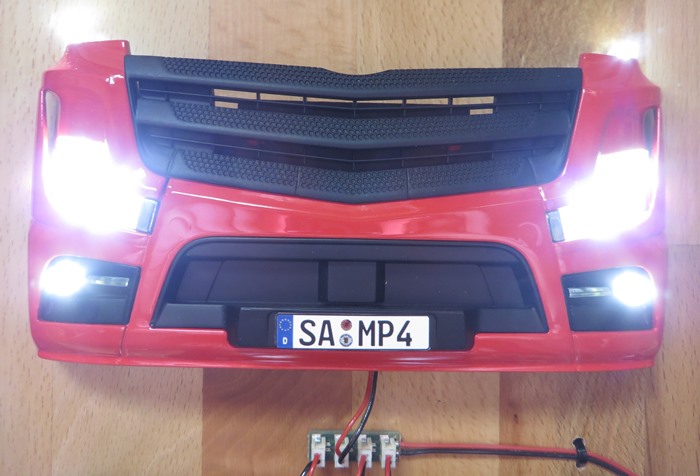

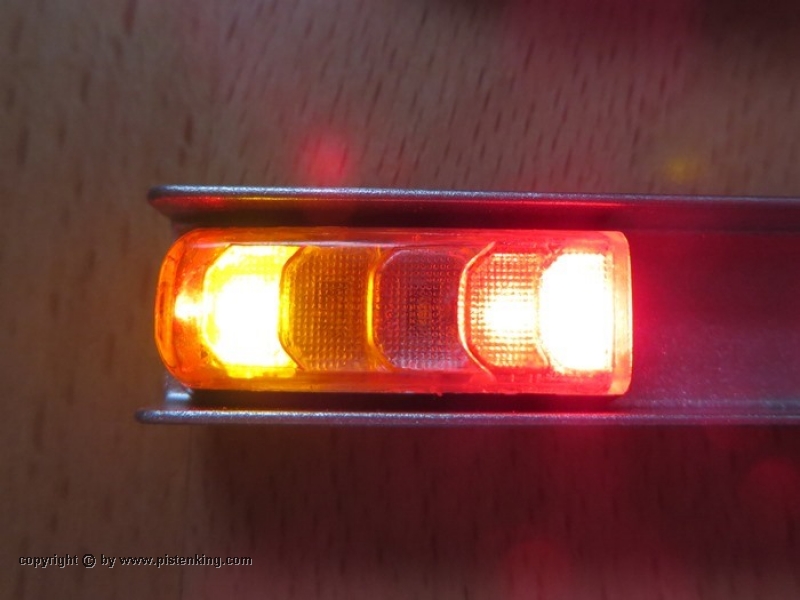

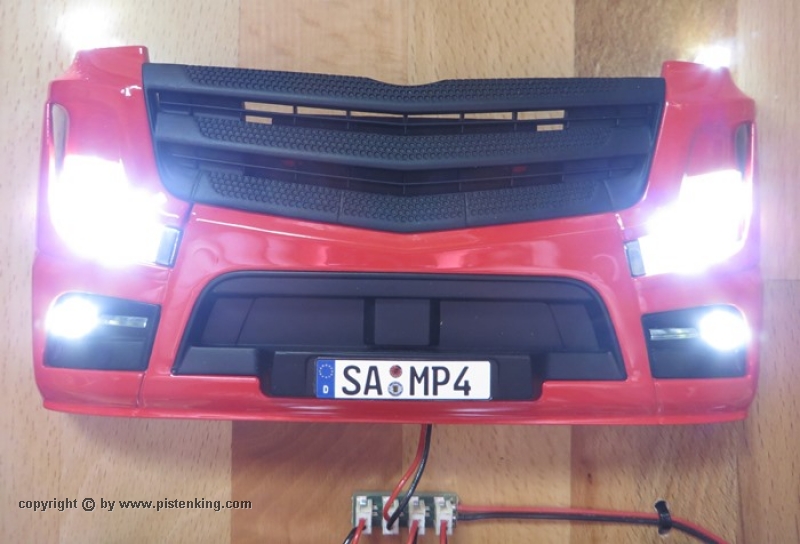

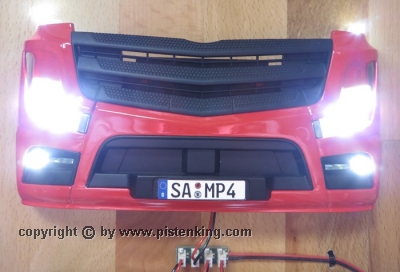

Light system for the Mercedes-Benz GigaSpace by ScaleArt with only two wires.
The light modules are delivered fully assembled and tested. They just need to be installed in the model.
No modifications are necessary on the driver cabin!
The lights can be controlled with the
Kingpad (not included).
The Central Module & Kingpad are not needed for transmitters of the brands Brixl, ScaleArt Commander and Blauzahn.
Instead, the
Kingbus-Interface is directly connected to the specific plug-in slot on the receiver. It will control the light functions via the standard Kingbus cables.
The Kingpad is not needed in this case, as the light functions can be selected by switches and buttons on the transmitter.
The extension with new light module is simple - just plug them in! More details are found in the manual.
Features:
- Parking lights
- Low beam head lights (only with parking lights)
- High beam head lights (permanently engaged only with low beam lights)
- Head light flasher
- Fog lights and rear fog light
- Brake light via driving channel
- Back-up light via driving channel or Kingpad
- Turn signals left / right
- Turn signal reset via steering channel
- Hazzard flashers
- Automatic curve light when turning or using turn signals
- Xenon light effect!
Technical Data:
- Operating voltage main module: 5 Volt from BEC
- Current: ca. 20 mA (idling)
Dimensions Main Module: 34 x 23,5 x 8 mm (L x B x H)
Delivery Contents:
- 1 Kingbus main module
- 2 Patch cables to connect the main module to the receiver
- 1 Kingbus patch cable 50cm
- 1 Kingbus 4-way distributor

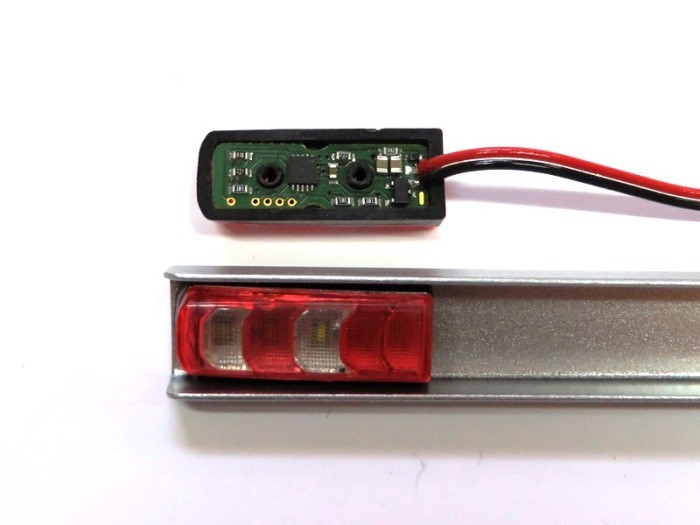

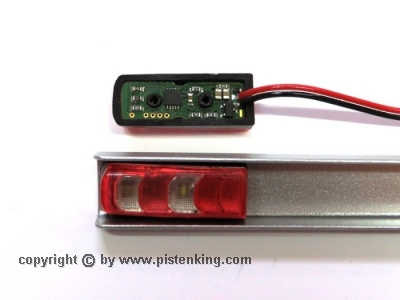

- 4 light boards
